Enamel wire is a special type of wire that consists of a metal core wrapped in an insulating enamel layer. The insulating enamel layer provides electrical insulation and protects the wire from external environmental influences. The diameter of enamel wire can vary depending on specific requirements, and it is commonly identified using the American Wire Gauge (AWG) specification or millimeters (mm).

For example, AWG 30 enamel wire will have a thinner diameter than AWG 24 enamel wire.

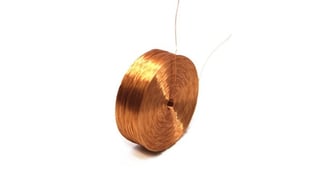

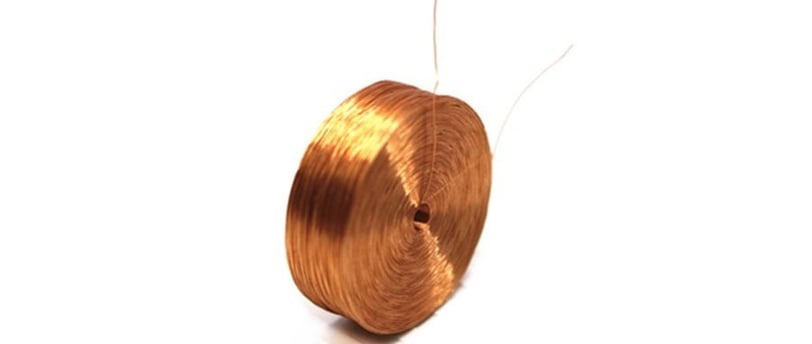

Enamel wire is widely used in electronic devices, motors, transformers, and other fields. It is also a common material for inductor coils, as it can carry various current loads and has good electrical insulation and conductivity.

Calculating the parameters of coils and enamel wire involves knowledge of electromagnetics and electrical engineering and requires consideration of multiple factors such as current, voltage, frequency, power, and design specifications. The following are several factors to consider when selecting enamel wire:

Current load: Determine the desired current value to be carried. Based on circuit design and load requirements, determine the maximum and average values of the current.

Rated current: Look up the technical information or specification sheet provided by the supplier to find the rated current parameters of the enamel wire. Ensure that the selected enamel wire's rated current can meet the requirements under circuit operating conditions and leave a certain safety margin.

Wire diameter and cross-sectional area: Select an appropriate wire diameter based on the resistance characteristics of the chosen material (usually copper or aluminum) and the required current value. A larger wire diameter will reduce resistance, decrease heat generation, and minimize power loss. The wire diameter can be calculated using the resistance formula R = ρ * (L / A), where R represents resistance, ρ represents the resistivity of the enamel wire, L represents wire length, and A represents the cross-sectional area.

The insulation layer and temperature resistance: Choose a suitable insulation layer material based on the circuit's operating environment and temperature requirements. Ensure that the enamel wire has sufficient temperature resistance to prevent the insulation layer from melting or damage.

Available space and mechanical strength: Consider the limitations of installation space and mechanical strength requirements when selecting the appropriate size of enamel wire.

Standards and certifications: Ensure that the selected enamel wire complies with relevant electrical standards and certification requirements, such as UL, CE, etc.

With 10 years of industry experience, Linkqi Electronics can provide more accurate advice and recommendations based on specific application requirements and design specifications to help you select the appropriate enamel wire.
